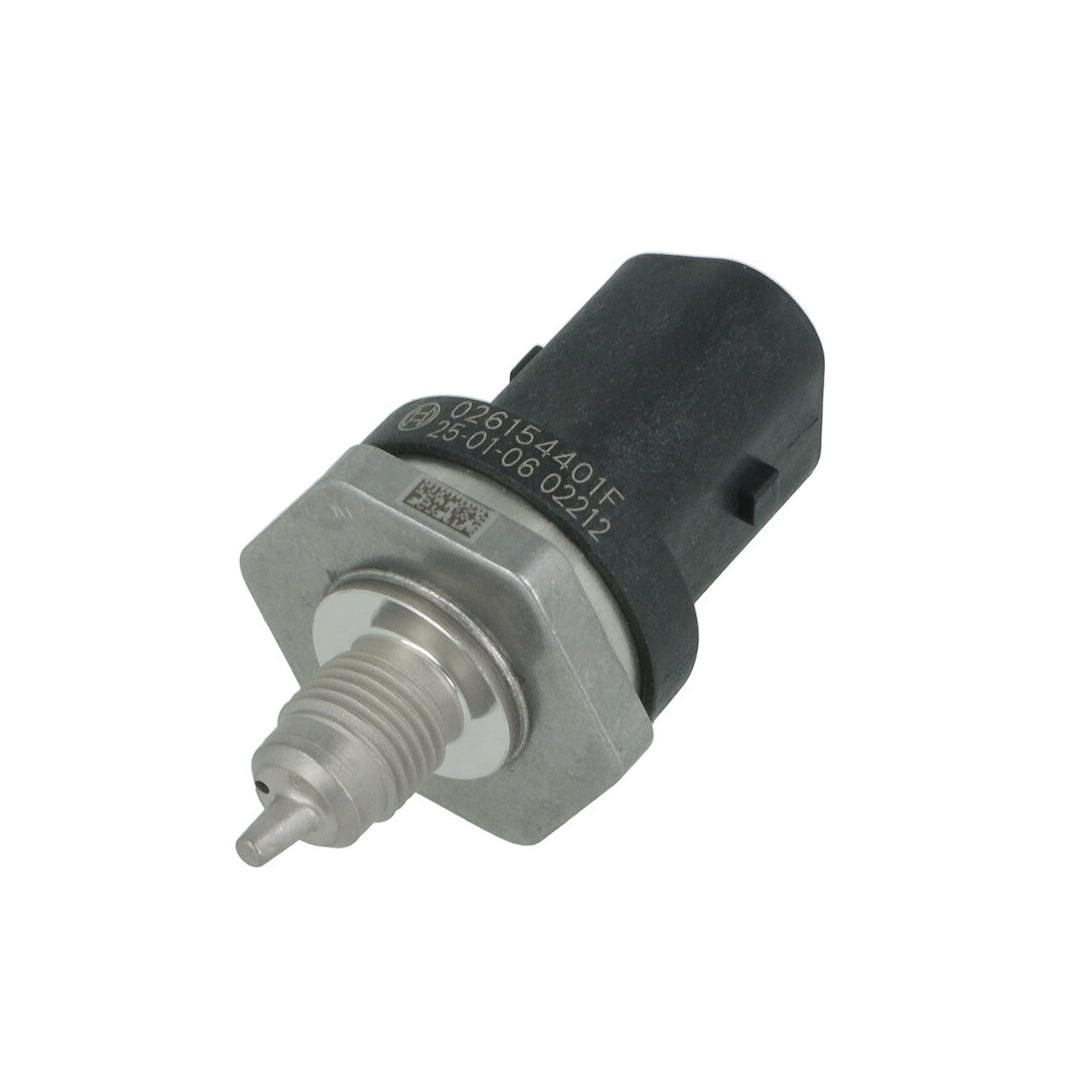

Bosch Performance Fuel Temperature / Oil Pressure Sensor

Ideal for pressure and temperature measurement in liquids / fluids

Measures pressures up to 10 bar and temperatures up to 140 °C

The Bosch sensor 026154401F (previous Bosch number 0261230482) combines two functions in one device: it measures both pressure and temperature in liquid media such as coolant, engine oil, transmission oil, or fuels. This sensor can accurately measure pressures up to 10 Bar and temperatures up to 140 °C.

Features:

• Combination sensor: Ideal for pressure and temperature measurement in liquids
• Compatibility: Suitable for diesel, gasoline, water, engine, and transmission oil
• Connection: 4-pin Bosch trapezoid connector
• Thread: M10x1 external thread with 45° cone seat for optimal sealing
• Measurement ranges:
  • Temperature: -40 °C to +140 °C
  • Pressure: 0 to 10 Bar
• Replaces Bosch part number: 0 261 230 482 / 0 261 230 340
• Power supply: Operates at +5 volts
• Tightening torque: 40 Nm
• Wrench size: 27 mm

Pin Assignment:

• 1: Not assigned
• 2: NTC
• 3: GND
• 4: Pressure signal
• 5: Supply voltage

Connector Details:

• Housing 1x: 928 405 159t
• Contact pin 4x: 928 498 808
• Wire seal 4x: 928 300 934
• Blanking plug 1x: 928 300 935

Thanks to its robust construction and versatility, this sensor is perfectly suited for various applications in automotive and mechanical engineering.

Sensor Type: Pressure Sensor PS-MPS1-TF_A

Note: The hydraulic system should be designed to ensure that under all operating conditions, no pressures or pressure spikes (e.g., due to cavitation or dynamic pressure surges) exceed the permissible overpressure limits of the sensor.
