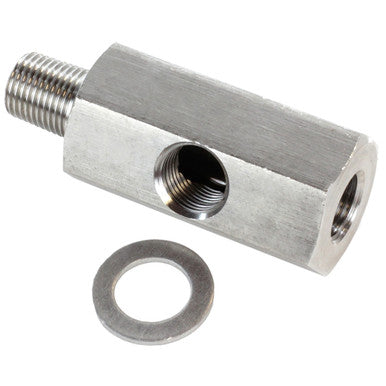

Exoracing Oil Pressure Sensor Adapter

Why use Exoracing Oil Pressure Sensor Adaptors?

If you want to add additional sensors or turbo oil feeds to your engine, then our Exoracing oil pressure sensor adapters are a must-have.

Our Exoracing oil pressure sensor adapters enable you to tap into your engine block's oil pressure sensor port, which is ideal for a turbo oil feed or as an oil pressure/temperature gauge adapter.

It's essential that oil feeds or sensors are installed correctly with the correct thread types. An oil leak can lead to catastrophic failure, so be sure to use genuine Exoracing for the best part possible.

Adding extra sensors to your engine can make it much easier to get an accurate reading on variables like oil temperature or pressure; this will help you spot any problems before they develop into something that could end your day of racing.

We manufacture our adaptors with CNC machining to ensure the best quality part possible; each individual adaptor is then inspected before shipping to ensure no swarf is left over from manufacturing. Made from high-quality 304 stainless steel, we are sure you'll be happy with the quality of our oil pressure sensor adaptors.

To further ensure that our adapters are leak-free, we provide a crush washer with each one to prevent any oil leaks from occurring around the engine. Our tapered oil pressure sensor adapters are a testament to our commitment to providing the best possible products for our customers.

With so many engine variations, it was impossible to make an adaptor to suit all engines, so we've come up with 6 of the most common and requested adaptors, ensuring that whatever application you are working with, we have you covered.

We've detailed each adaptor's inlet, outlet, and centre ports using the thread type and size for each port below.

Purchase Includes:

• 1 x Exoracing Oil Pressure Sensor Adaptor
• 1 x Exoracing Crush Washer
• 1 x Exoracing Lifetime Warranty

Features:

• High-quality 304 Stainless Steel.
• Compact design to work with most applications.
• Most popular/common variations available.
• Every oil pressure sensor adaptor is inspected before shipping.
• CNC machined for a quality part
• Perfect for turbo oil feeds or adding additional sensors.
• Exoracing lifetime warranty.

Installation Guide:

1. Before starting your installation, ensure you have the correct adaptor for your application; the engine is off and has cooled down if it recently ran.
2. Remove your stock oil pressure sensor.
3. Thread in your adaptor from the sensor port on the block, ensuring you use the supplied crush washer.
4. Tighten the fitting to around 18Nm, but care must be taken at this stage when using the NPT threads as if the thread in the block is old, this torque figure may change to ensure a leak-free seal, you may also require some PTFE tape with the NPT style threads.
5. Install the stock sensor back into the outlet of your Exoracing oil pressure sensor adaptor.
6. You can now add your new oil drain or sensor into the centre port of your adaptor.
7. You are now done with your installation; we'd love to see photos of your newly fitted products on social media. Tag us at @exoracinguk.

Technical Specifications:

Notes:

• Please check the inlet and outlet thread size before ordering.
• We recommend a professional installation to ensure no leaks.
