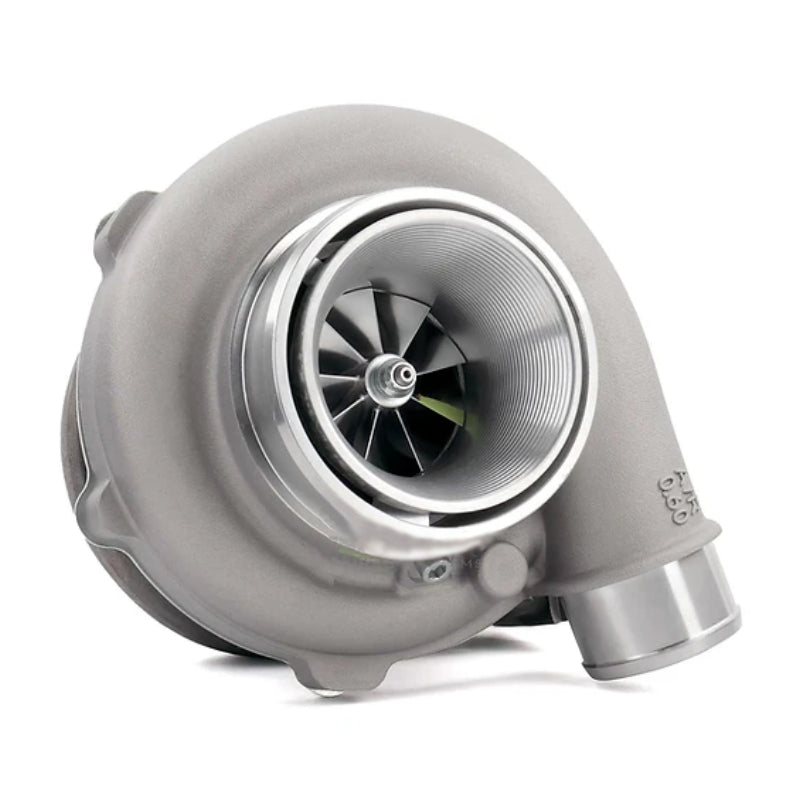

Pulsar PTX3071R Gen 2

Pulsar PTX3071R Gen 2

• Please note, T51R housing option requires an extra 7 days handling time
• Recommended engine displacement 1.8 to 3.0 litres. Power outputs up to 650hp possible.
• Dual Ceramic Ball Bearing System
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Gen2 Cover Integrated with the Speed Sensor Port
• 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing options available
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
• Standard or T51R mod compressor housing options available
• Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).

SPEC

• Compressor Wheel: 54*71mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T3, T4 or 2" V-Band
• Turbine Outlet: 3" V-Band(3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

It's strongly recommended to run water cooling to aid reliability.
