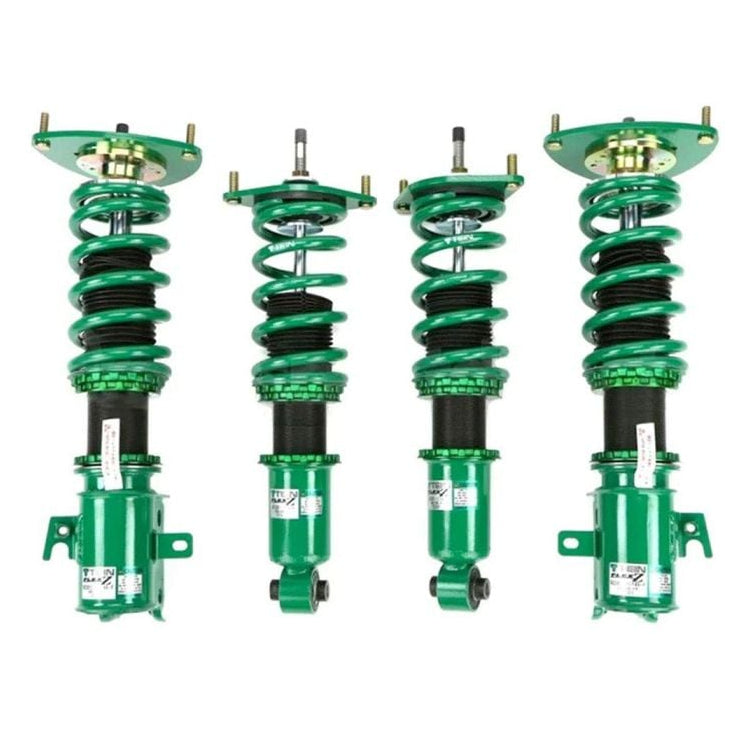

TEIN FLEX Z COILOVERS HONDA CIVIC FN2 TYPE R

The TEIN Flex Z coilover kit is an affordable, street ready kit with a Twin tube internal construction. Ride height adjustments are made by moving the lower spring seat either up or down with 16-stage damping force adjustments made via the click adjuster positioned on the top of the coilover. Includes TEIN top mounts.

Made in Japan, every TEIN kit application is test fitted and road tested by highly trained suspension engineers to ensure the best possible balance between comfort and performance on the road.

• Kit Type: Tein Flex Z
• Part Number: VSHA2-C1AA1
• Car Make: Honda
• Car Model: Civic Type R (FN2)
• Spring Rate - Front: 7kg Rear: 5kg

KIT NOTES

REAR: interior needs to be cut or removed, to avoid interference.

Product Features:

• Twin tube damper design
• 16-stage damping adjustment
• Full length ride height adjustable system
• Includes top mounts
• Powder coated damper body with zinc coated coilover section
• Fully serviceable

Note: The product images shown are for illustration purposes only and may not be an exact representation of the product.

Fits Vehicles

• Honda Civic FN2 Type R 07-11 FWD Rec. ride height drop (15 to 35 front, 15 to 35mm rear)
• Honda Civic Type R Euro FN2 Type R Euro 09-12 FWD Rec. ride height drop (15 to 35 front, 15 to 35mm rear)
