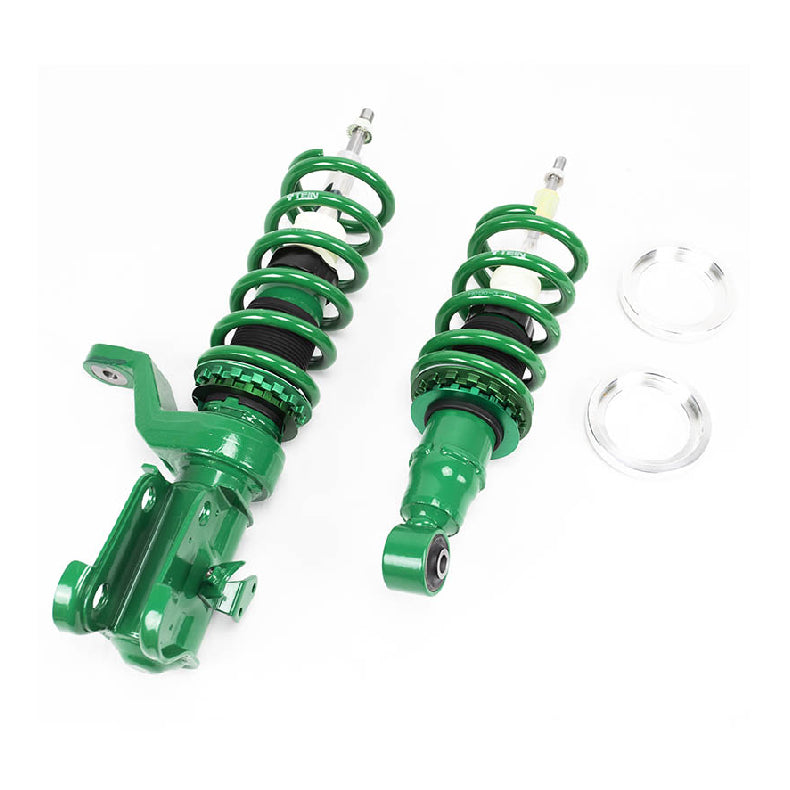

Tein Street Basis Z Coilivers Honda Civic EP3 Type R

The TEIN Street Basis Z coilover kit is an affordable, street ready kit with a Twin tube internal construction. Ride height adjustments are made by moving the lower spring seat either up or down and damping is fixed.

Each kit application is test fitted and road tested to ensure the best possible balance between comfort and performance on the road.

Made in Japan, every TEIN kit application is test fitted and road tested by highly trained suspension engineers to ensure the best possible balance between comfort and performance on the road.

• Kit Type: Tein Street Basis Z
• Part Number: GSA22-8USS2
• Car Make: Honda
• Car Model: Civic Type R (EP3)
• Spring Rate - Front: 6kg Rear: 8kg

KIT NOTES

3DR/4CYL. FRONT: lh has left-hand threads. be sure to tighten in the correct (anticlockwise) direction. (spring seat and lock)
3DR/4CYL/incl 04-05. FRONT: lh has left-hand threads. be sure to tighten in the correct (anticlockwise) direction. (spring seat and lock)

Product Features:

• Twin tube damper design
• Fixed damping
• Full length ride height adjustable system
• Powder coated damper body for resistance against corrosion
• Uses OEM mounts
• Optimal dust boots offer protection

Note: The product images shown are for illustration purposes only and may not be an exact representation of the product.

Fits Vehicles

• Honda Civic EP3 3DR/4CYL SI 02-05 FWD Rec. ride height drop (50 to 70 front, 50 to 70mm rear)
• Honda Civic Type R EP3 Type R 01-05 FWD Rec. ride height drop (50 to 70 front, 50 to 70mm rear)
