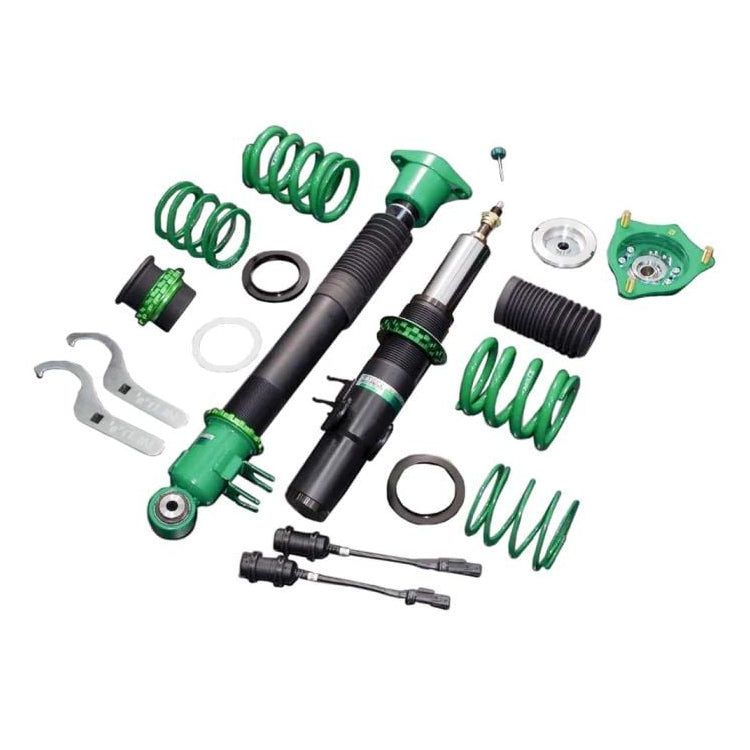

The TEIN Mono Racing kit has been developed for drivers who frequently drive at race tracks. Based on the settings of the high-end Super Racing model from TEIN plus a wealth of data gained through participating in various motorsports, the TEIN Mono Racing spring rates and damping are best suited for sports driving.

Made in Japan, every TEIN kit application is test fitted and road tested by highly trained suspension engineers to ensure the best possible balance between comfort and performance on the road.

• Kit Type: Tein Mono Racing
• Part Number: VSHK8-K1NS4
• Car Make: Honda
• Car Model: Civic Type R (FK8)
• Spring Rate - Front: 14kg Rear: 12kg

KIT NOTES

Error canceller included. REAR: use of edfc series is recommended, as it's difficult to adjust damping force by hand due to vehicle structure. front springs: selected from 12.14, 16K. rear springs: selected from 10.12, 14K. us&uk spec included front: 14K/rear: 12K. optional springs- front: 12.16K/rear: 10.14K. price includes springs.

Product Features:

• Monotube tube damper design
• Adjustable camber and caster top mounts
• 16-stage damping adjustment
• Spring rate options
• Full length ride height adjustable system
• EDFC compatibility for in-car damping adjustment

Note: The product images shown are for illustration purposes only and may not be an exact representation of the product.

Fits Vehicles

• Honda Civic Type R FK8 Type R 17-21 FWD
• Honda Civic Type R FK8 Type R 17-22 FWD Rec. ride height drop (20 to 40 front, 20 to 40mm rear)
