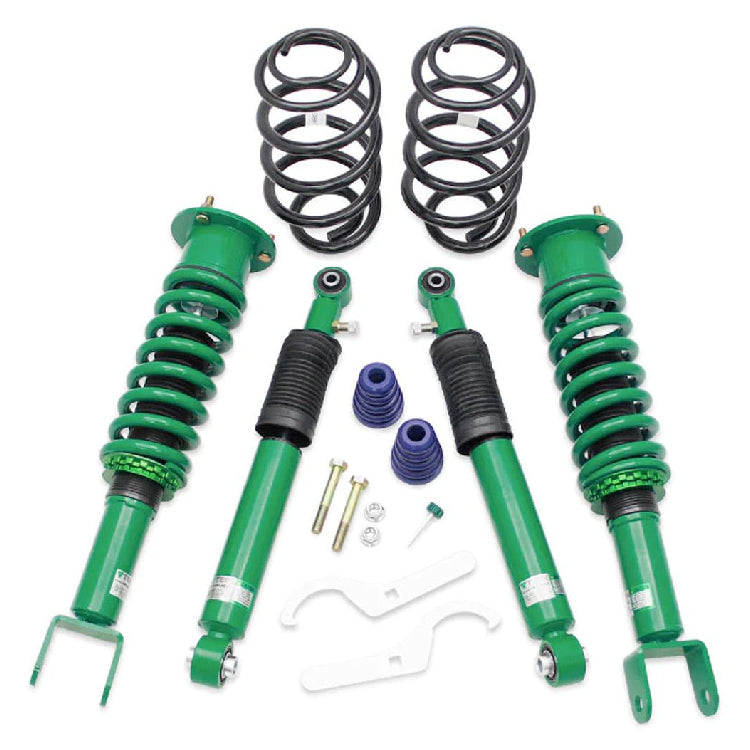

The TEIN Street Advance Z coilover kit is an affordable, street ready kit with a Twin tube internal construction. Ride height adjustments are made by moving the lower spring seat either up or down with 16-stage damping force adjustments made via the click adjuster positioned on the top of the coilover. TEIN's EDFC system is fully compatible with this kit, giving you the ability to make damping adjustments on the fly from inside the cockpit so you can feel the changes in real time.

Made in Japan, every TEIN kit application is test fitted and road tested by highly trained suspension engineers to ensure the best possible balance between comfort and performance on the road.

• Kit Type: Tein Street Advance Z
• Part Number: GSA22-9USS2
• Car Make: Honda
• Car Model: Civic Type R (EP3)
• Spring Rate - Front: 6kg Rear: 8kg

KIT NOTES

3DR/4CYL. FRONT: lh has left-hand threads. be sure to tighten in the correct (anticlockwise) direction. (spring seat and lock)
3DR/4CYL/incl 04-05. FRONT: lh has left-hand threads. be sure to tighten in the correct (anticlockwise) direction. (spring seat and lock)

Product Features:

• Twin tube damper design
• 16-stage damping adjustment
• Full length ride height adjustable system
• Powder coated damper body for resistance against corrosion
• Uses OEM mounts
• EDFC compatibility for in-car damping adjustment

Note: The product images shown are for illustration purposes only and may not be an exact representation of the product.

Fits Vehicles

• Honda Civic EP3 3DR/4CYL SI 02-05 FWD Rec. ride height drop (50 to 70 front, 50 to 70mm rear)
• Honda Civic Type R EP3 Type R 01-05 FWD Rec. ride height drop (50 to 70 front, 50 to 70mm rear)
